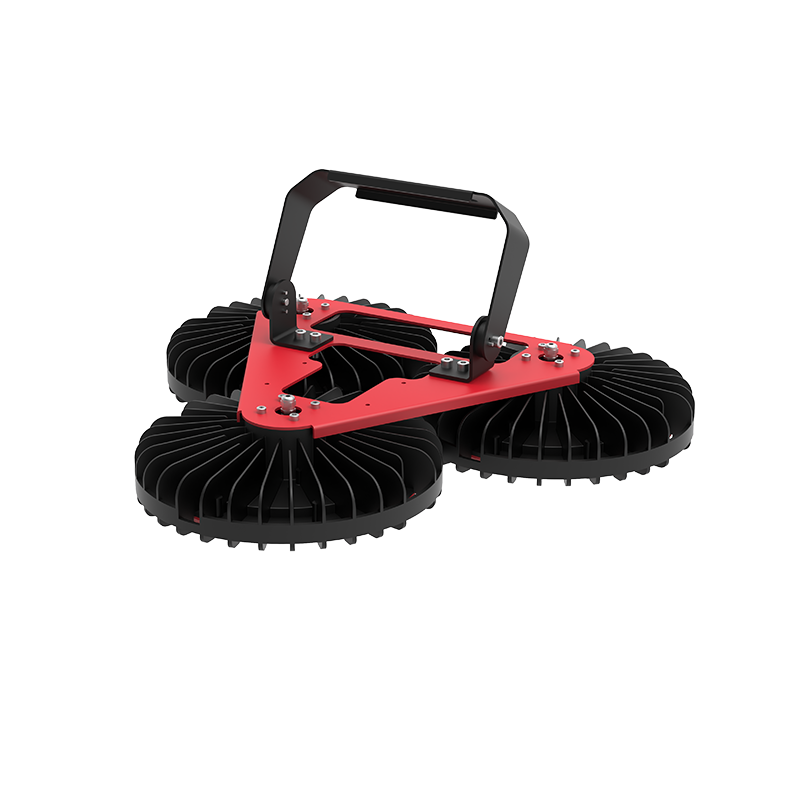

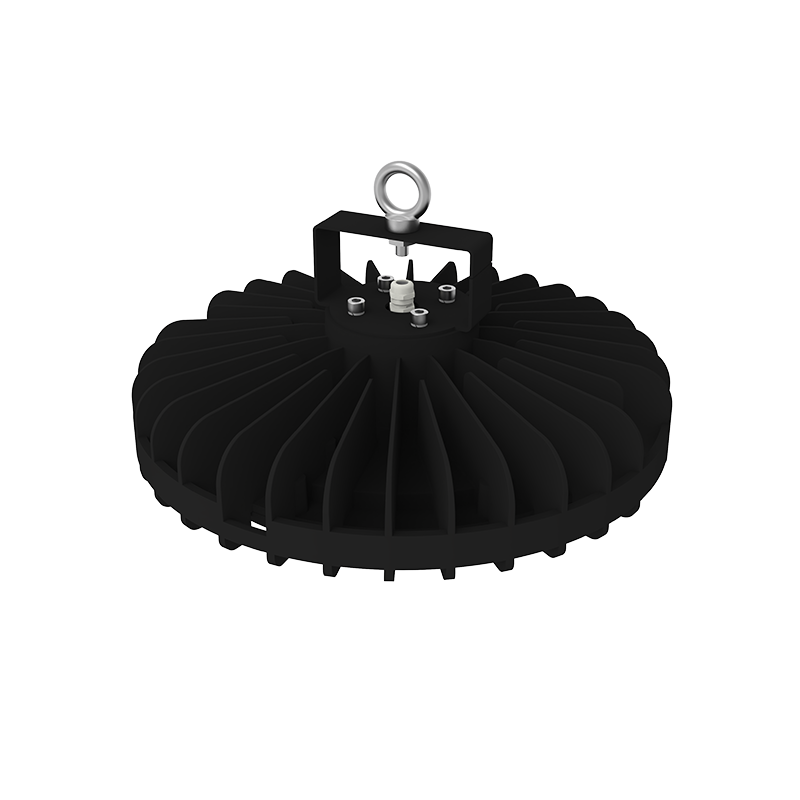

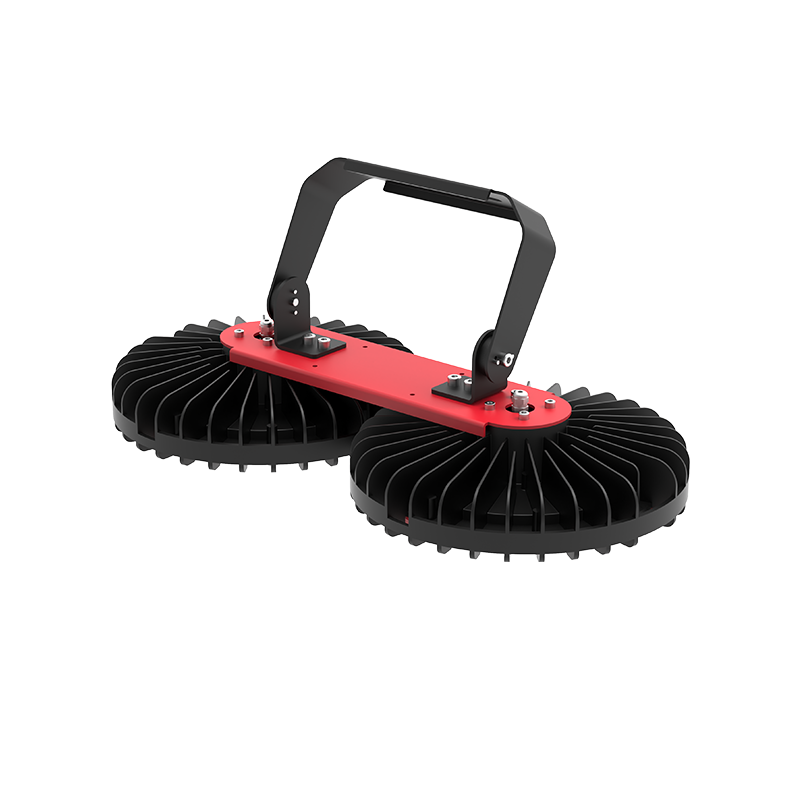

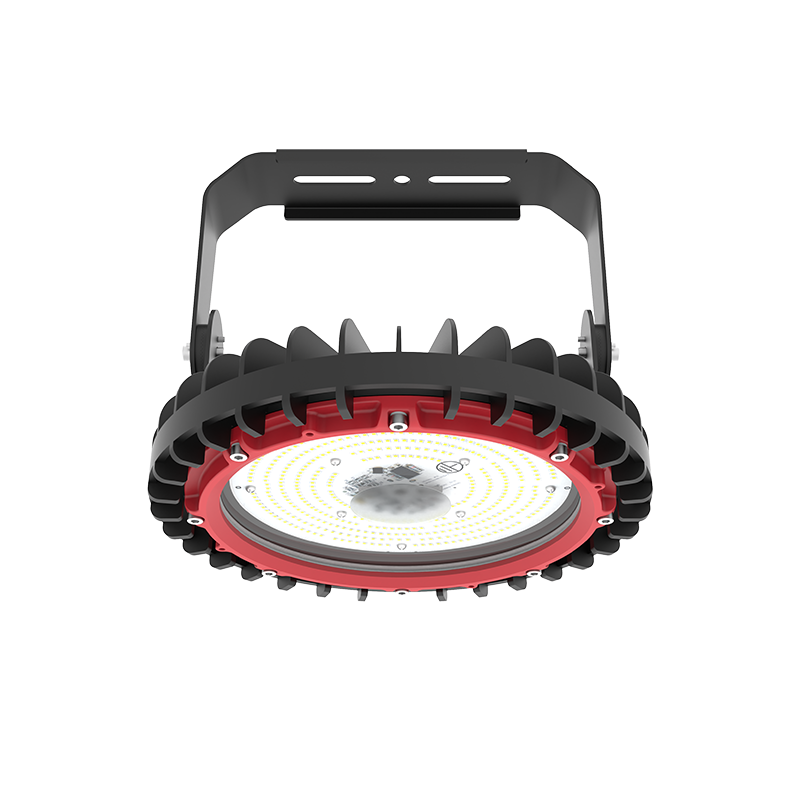

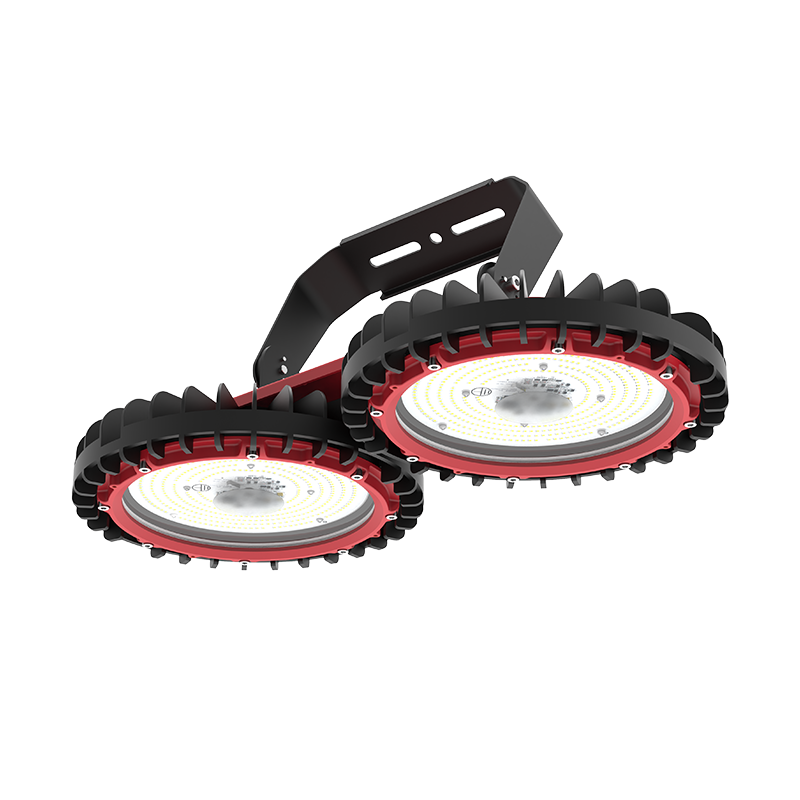

COOL MF Series
Capable of Withstanding Up to 176°F (80°C) Without Breaking a Sweat
The Cool MF series is designed to withstand up to 194°F (90°C) ambient temperature. Made for harsh, extreme heat environments such as die-cast facilities, foundries, iron forges, steel mills, power generation, factories, and chemical plants. Offering exceptional efficacy of 160lm/W and low maintenance cost to meet the demand of hot industrial environments. From 16,000 to 72,000 lumen output, it ideally replaces 250W-1000W HID fixtures.
Ratings and Certifications:
UL 1598 Wet Locations
UL 8750 LED Safety
IP67
| Electrical | |
| Power (W) | 100W,150W,200W,300W,450W |
| Voltage(s)/Frequency | AC120V/277V @50/60HZ |
| Power Factor | ≥99% |
| THD | <20% |
| L70 | 150,000 Hours @ 80°C?? |
| Surge Protection | 4KvA |
| Optical | |
| Lumen Output | 19,600Lm (110°); 17,223Lm (60°) |
| Lumen Efficacy | 130Lm/W; 115Lm/W |
| Beam Angle(s) | 110°; 60° |
| CCT | 5000K, 4000K |
| CRI | Ra>70 |
| Mechanical | |
| Ambient Operating Temperature | -40°F to 176°F (-40°C to 80°C) |
| Hardware | Marine Grade Stainless Steel |
| Housing Construction | Aluminum Extrusions |
| Housing Finish | Thermoset Powercoat |
| Lens Material | Tempered Glass |
| Mounting Options | Hanging Hook |
| Weight | 22 lbs / 10kg |
| Dimensions (L×W×H) | 22in / 560mm x 10in / 260mm |
| Connections | 18” cord |
| Warranty | |
| Warranty Terms | Standard: 3 years Extended: 5 years |
