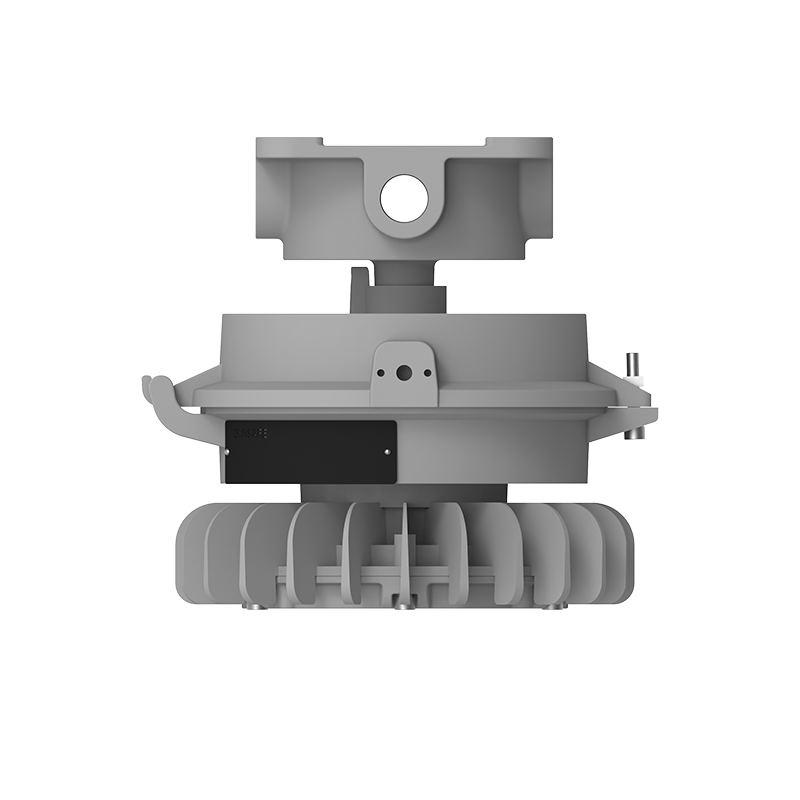

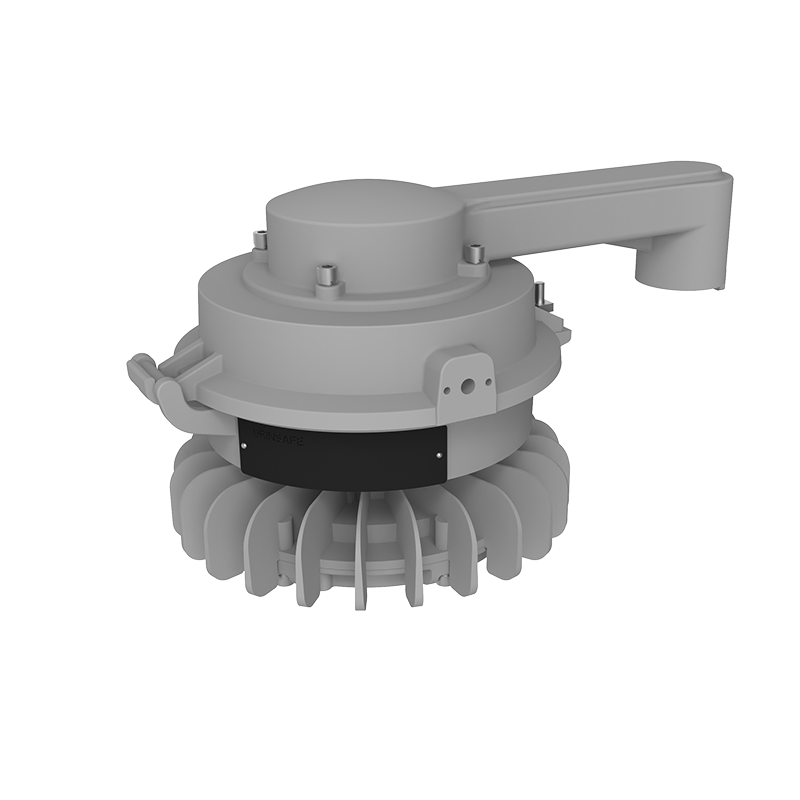

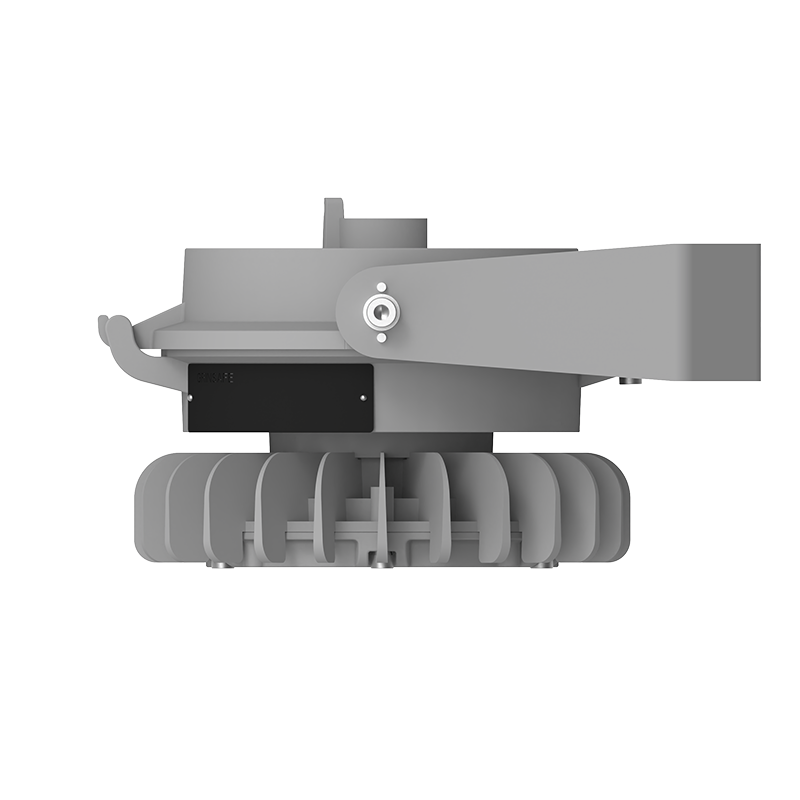

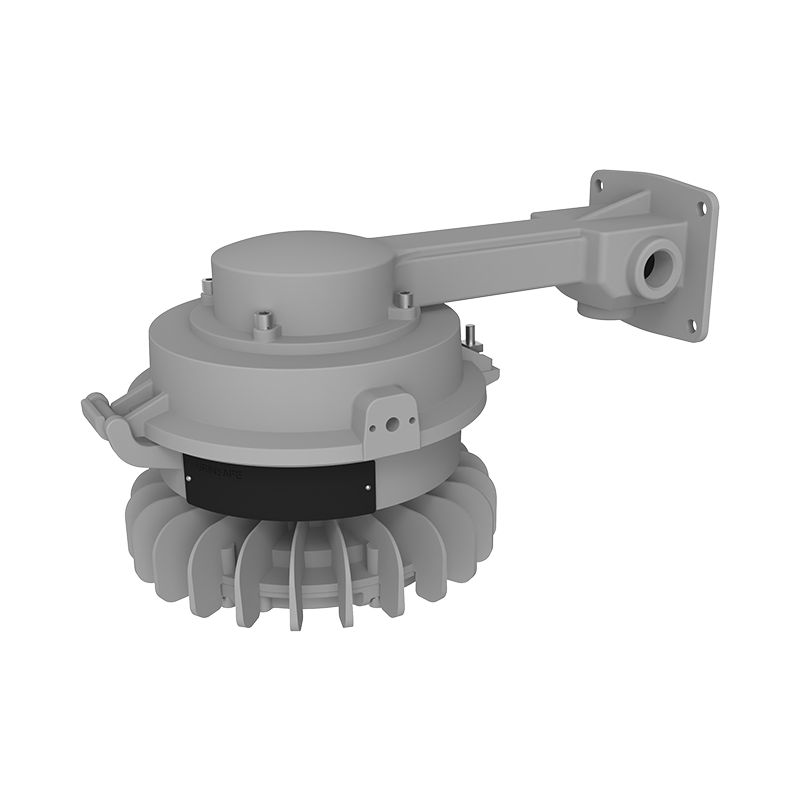

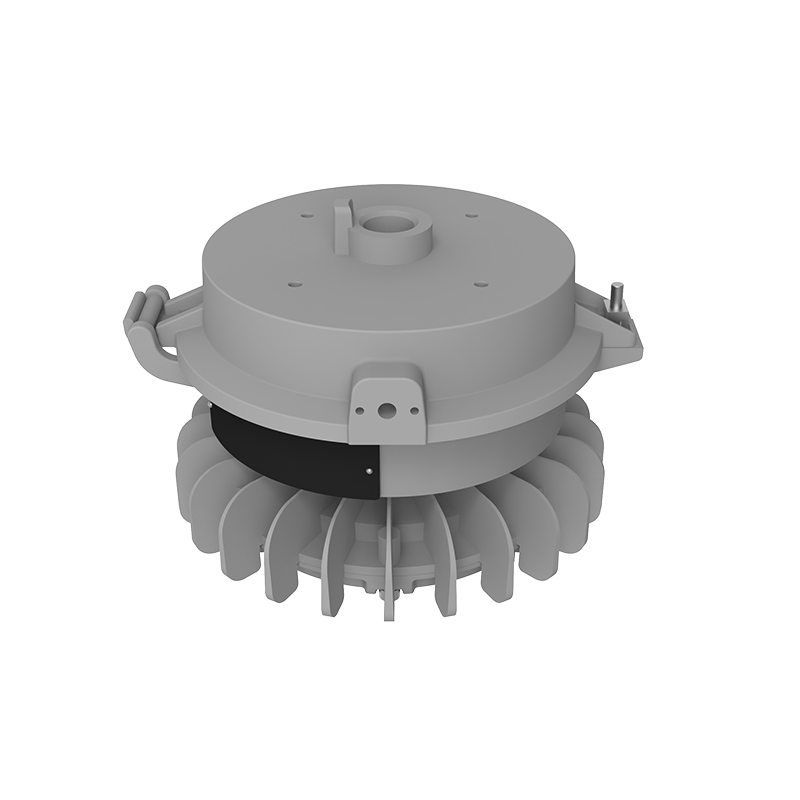

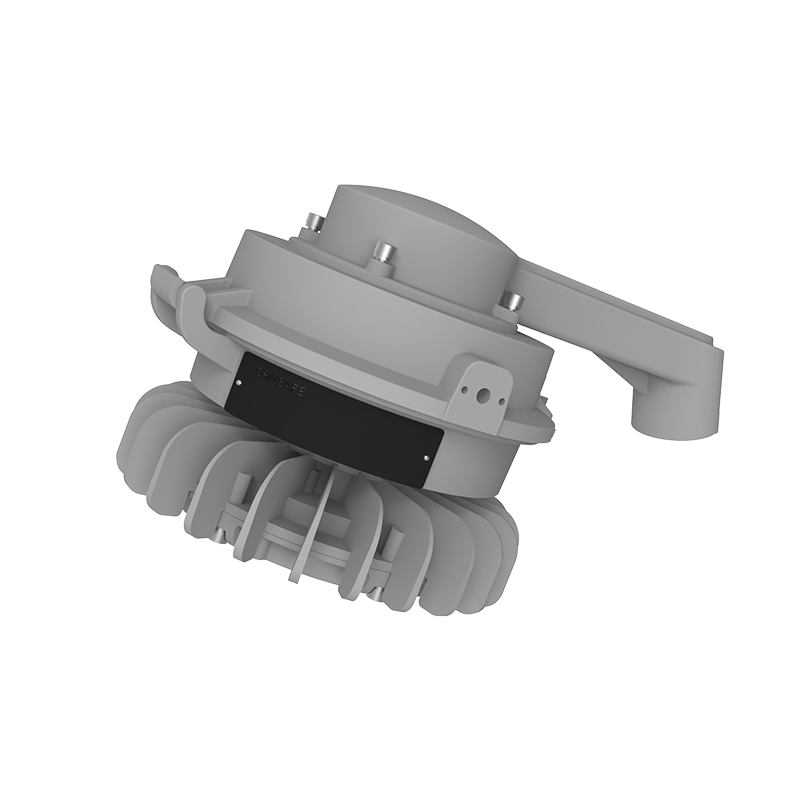

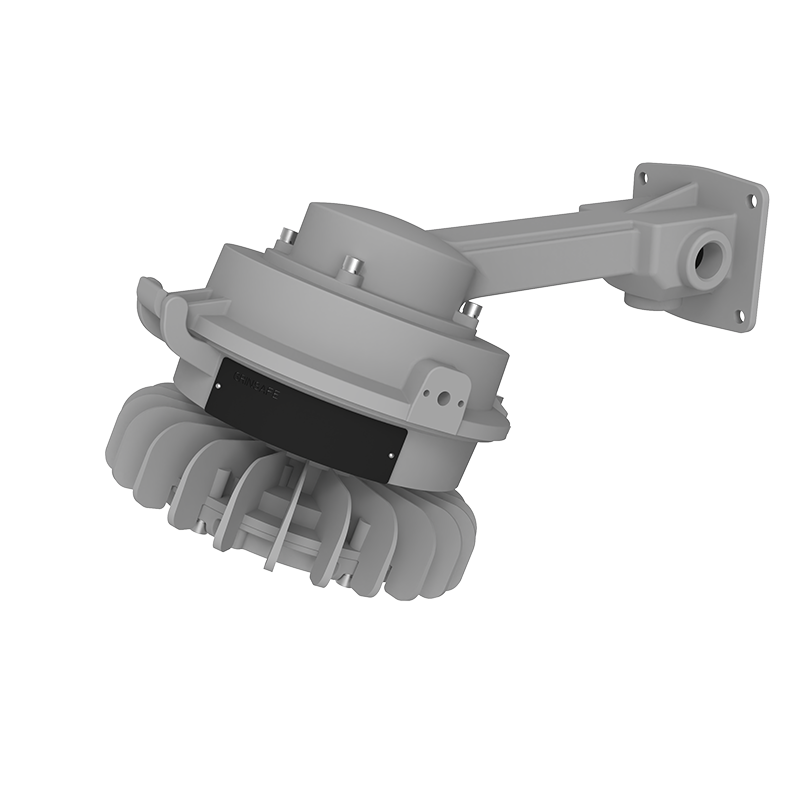

CIRCLE MINI Series
Compact and Powerful with Options for Every Application
Circle Mini™ series lights are energy-efficient and constructed from corrosion-resistant, copper-free aluminum. Designed to withstand corrosion, water, dust, shock, and vibrations, they ensure long-lasting, safe operation in harsh and hazardous environments.
Ratings and Certifications
Class l Division 2/Groups A,B,C,D
Class ll Division 2/Group E,F,G
Class ll Division 2/Group F,G
Class lll
UL 844 Hazardous Location
UL 1598 Wet Location
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137
CSA C22.2 No.250.0:21
IP66
FCC
IK09
5G
NEMA 4X
| Electrical | |
| Power (W) | 40W, 60W |
| Voltage(s)/Frequency | 100-277,347-480V/AC |
| Power Factor | >.095 |
| L70 | >150,000 @25°C |
| Optical | |
| Lumen Output | 6000 lm, 9600 lm |
| Beam Angle(s) | T1/T3/110° |
| CRI | Ra>70 |
| Mechanical | |
| Ambient Operating Temperature | -40F to 131F (-40C to 65C) |
| T-Code Rating | CID2 – T4A (40W)CID2 – T4 (60W)
CIID1 – T5 CIID2 – T5 |
| Housing Construction | Die Cast Aluminum |
| Housing Finish | Thermoset Powder Coat |
| Lens Material | Tempered Glass/Polycarbonate/Drop Lens |
| Weight | 7.1lbs/ 3.2kg |
| Dimensions | 243mm Dia x 218mm H (9.6in Dia x 6.4in H) |
| Warranty/Certifications | |
| Warranty Terms | 10-year limited system warranty |
