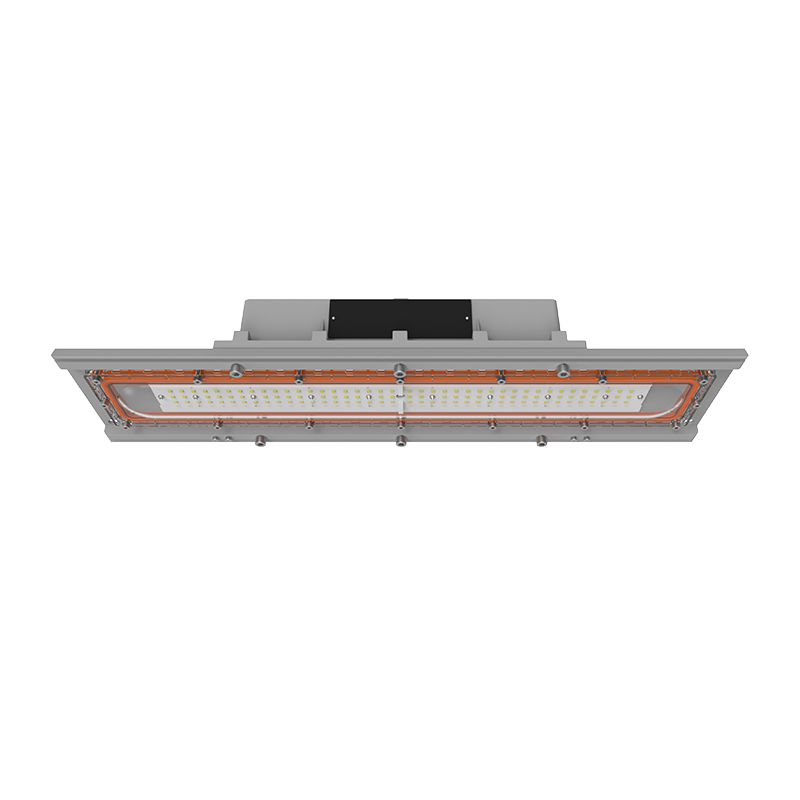

LINE H2 Series

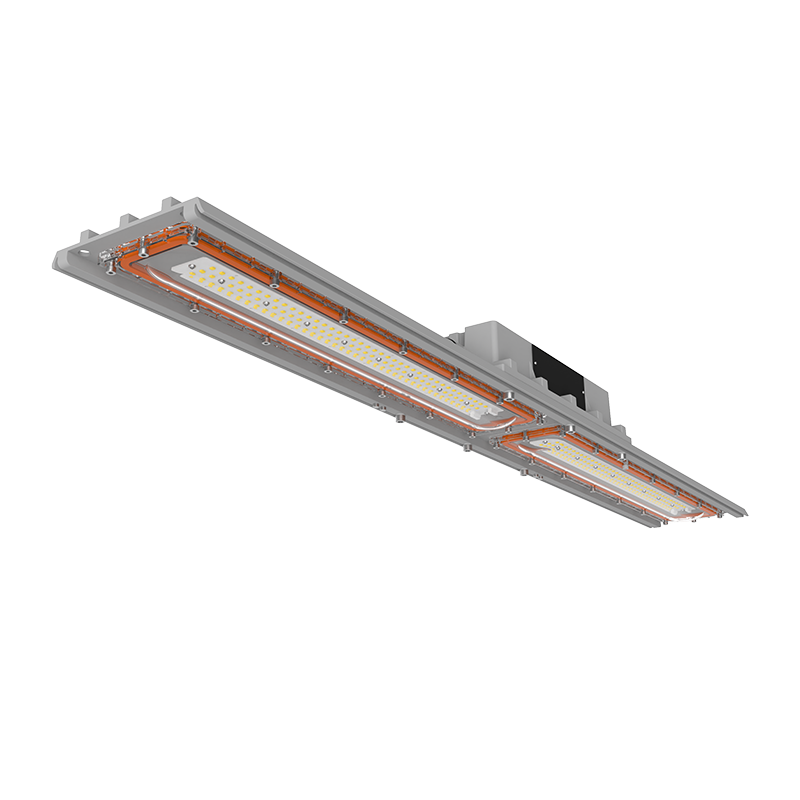

Low Profile, Available in 2′ and 4′ Lengths
Unique hinge-design of driver housing LED, features the industry’s most versatile and flexible mounting options. The Line is the ideal solution for many hazardous, high vibration, and corrosive environments. Emergency Lighting option is available.
Ratings and Certifications
Class l Division 2/Groups A,B,C,D
Class ll Division 1/Group E,F,G
Class ll Division 2/Group F,G
Class lll
UL 844 Hazardous Location
UL 1598 Wet Location
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137
CSA C22.2 No.250.0:21
IP66
FCC
IK10
5G
NEMA 4X
| Electrical | |
| Power (W) | 30W/40W/45w/60w/ 80W |
| Voltage(s)/Frequency | AC100 – 277V @50/60HZ AC347 – 480V @50/60HZ |
| Power Factor | ≥95%@120V |
| L70 | >150,000 Hours @ 25°C |
| Optical | |
| Lumen Output | 5100 lm – 13600 lm |
| Lumen Efficacy | 170Lm/W |
| Beam Angle(s) | 30° / 60° / 90° / 110° / T2 / T3 / T4 |
| Ambient Temperature | 40°F to 122°F (-40°C-70°C) |
| CRI | Ra>70 |
| Mechanical | |
| Ambient Operating Temperature | -40°F to +140°F (-40°C to 70°C) |
| T-Code Rating | Class I Div 2: T4A
Class II Div 1: T5 |
| Construction | Die Cast Aluminum Housing and Die Cast Driver Box |
| Finish | Thermoset Powder Coat |
| Lens Material | Polycarbonate |

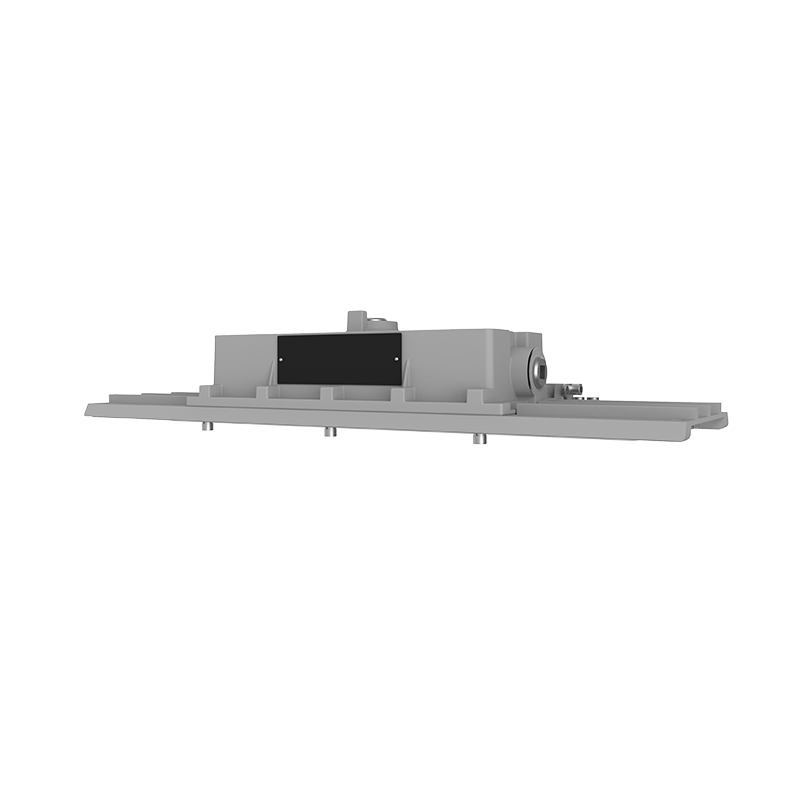

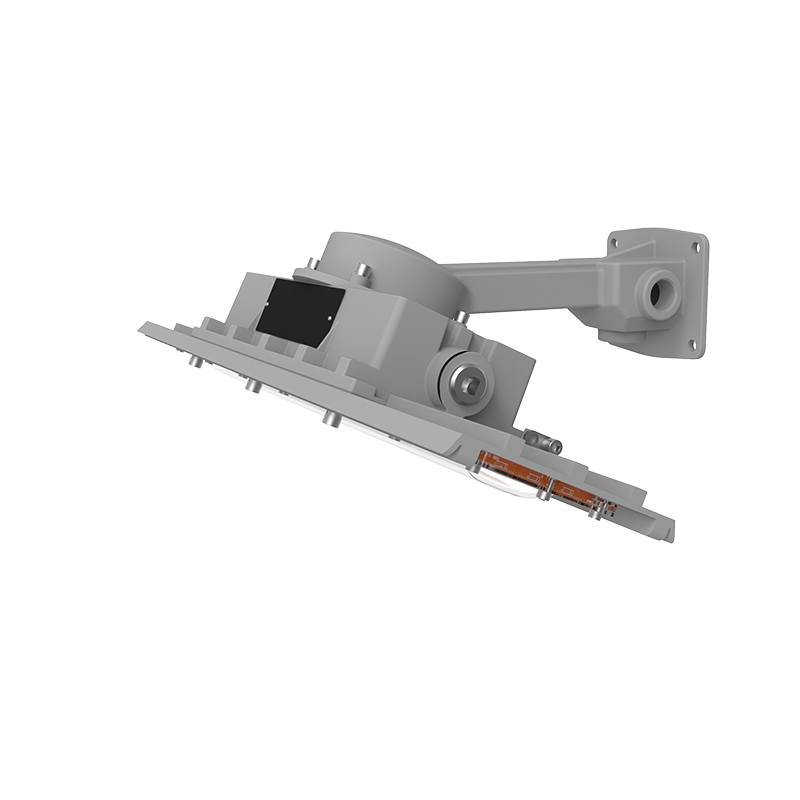

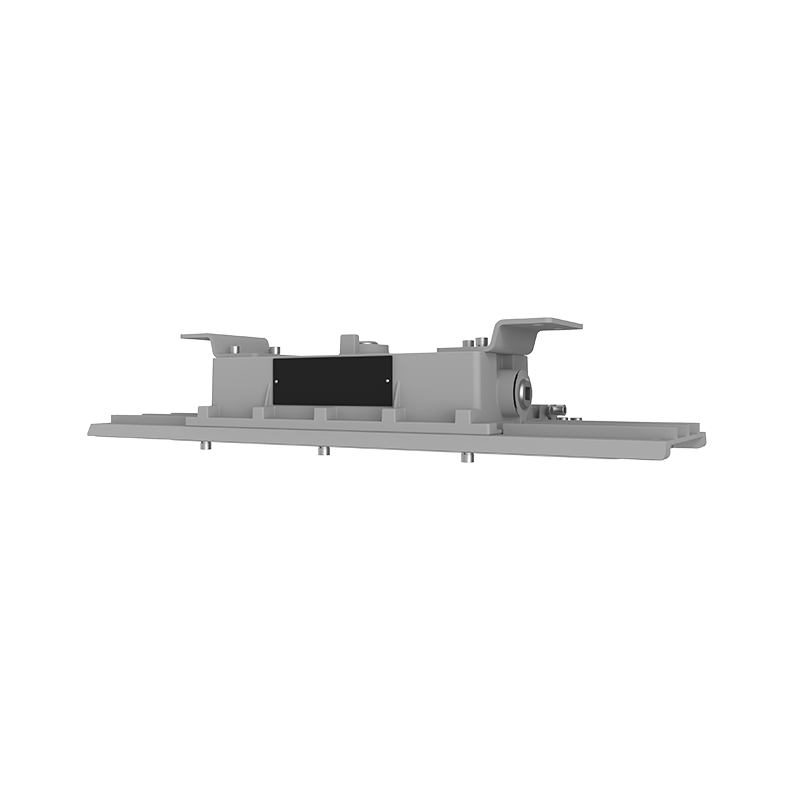

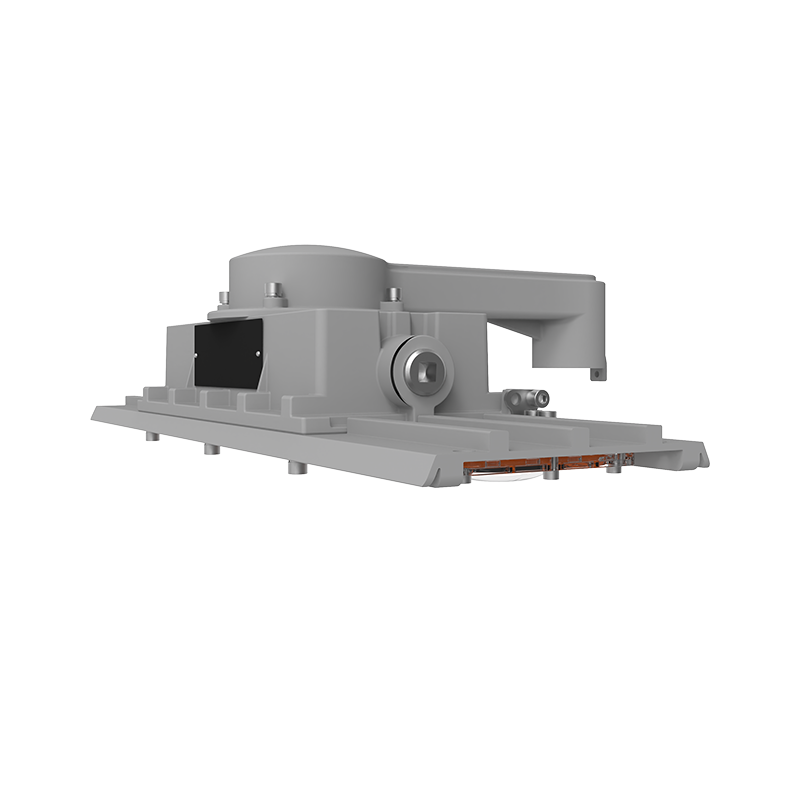

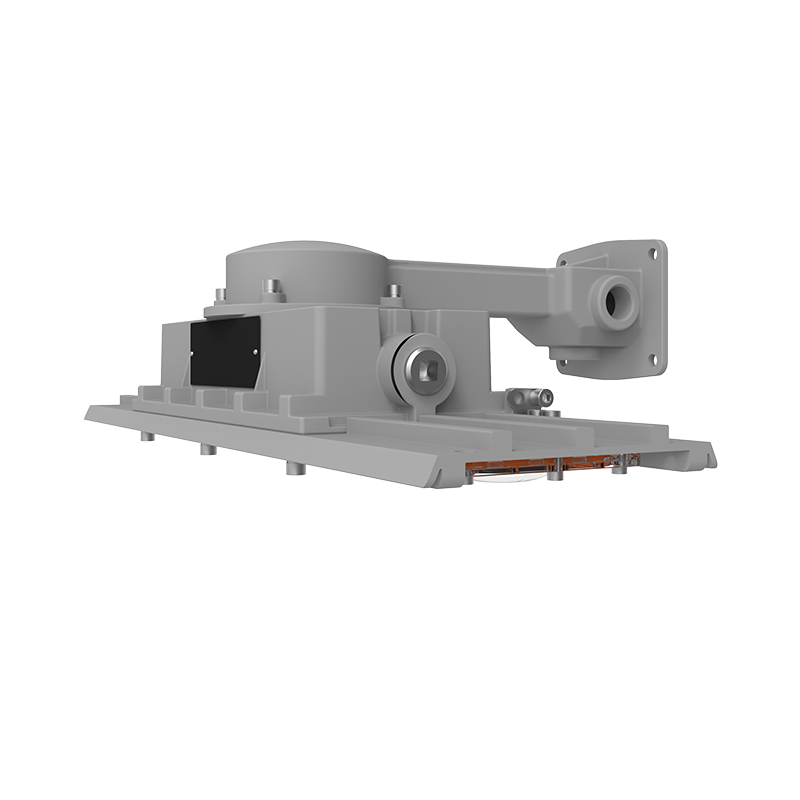

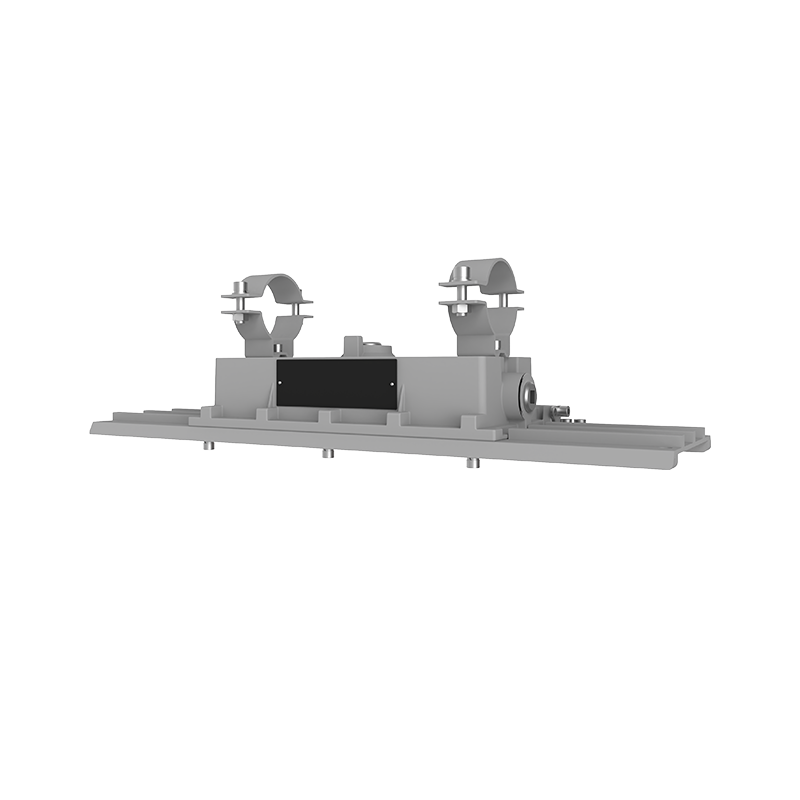

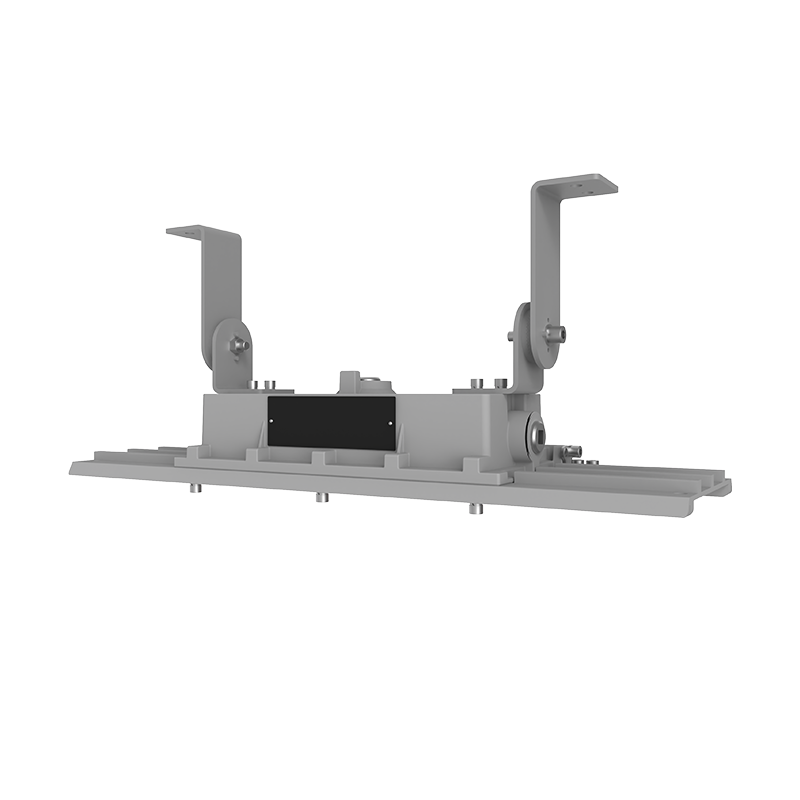

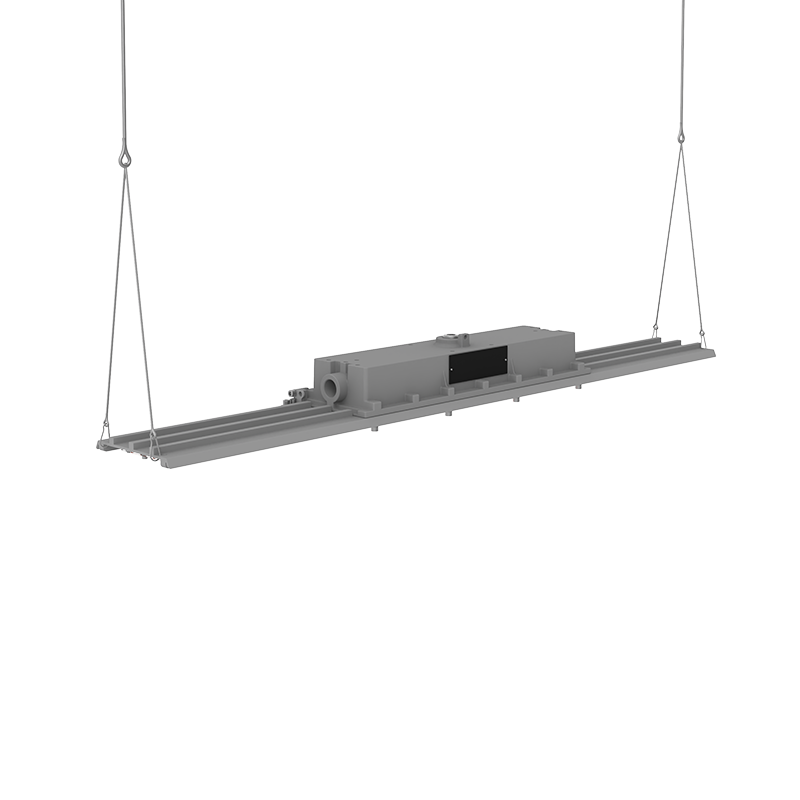

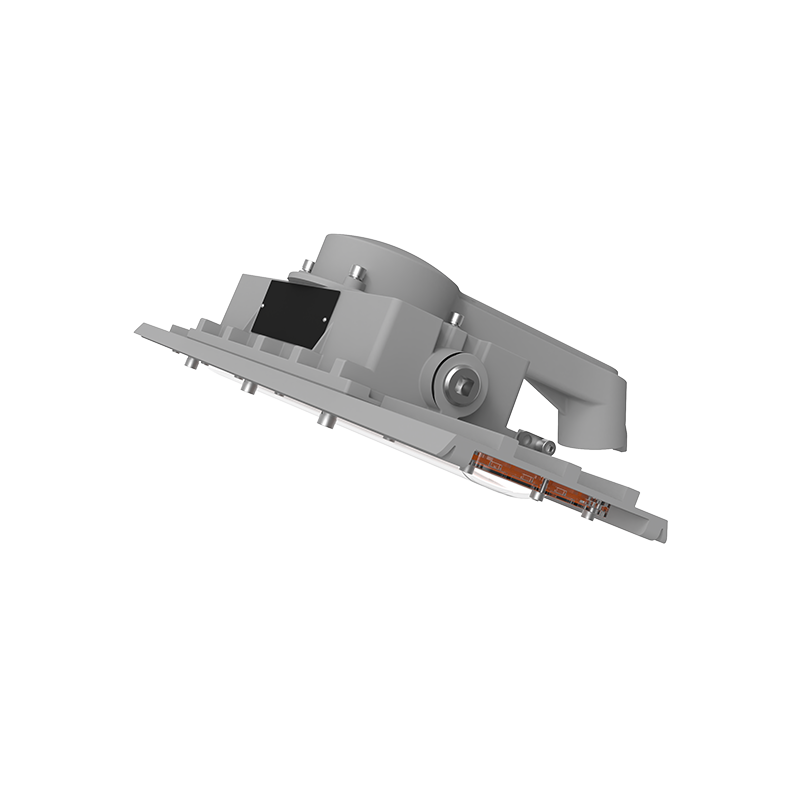

| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion |
| Weight | 2ft.: 3.4 kg (7.5 lbs) 4ft: 5.2 kg (11.4 lbs) |
| Connections | 3/4″ NPT,1-1/2” NPT |
| Warranty/Certifications | |
| Warranty Terms | 5-year limited system warranty |
