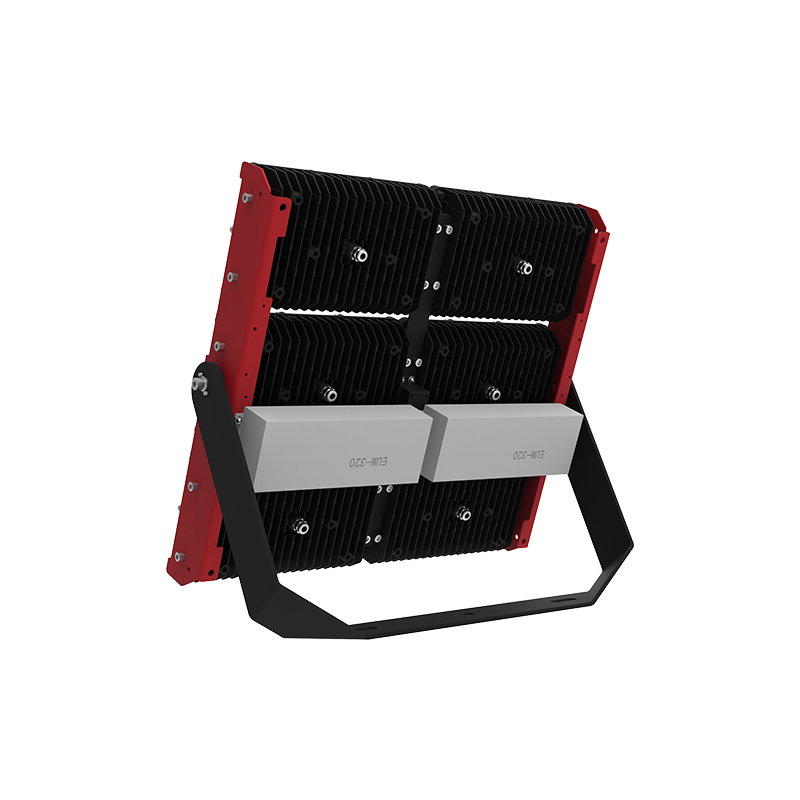

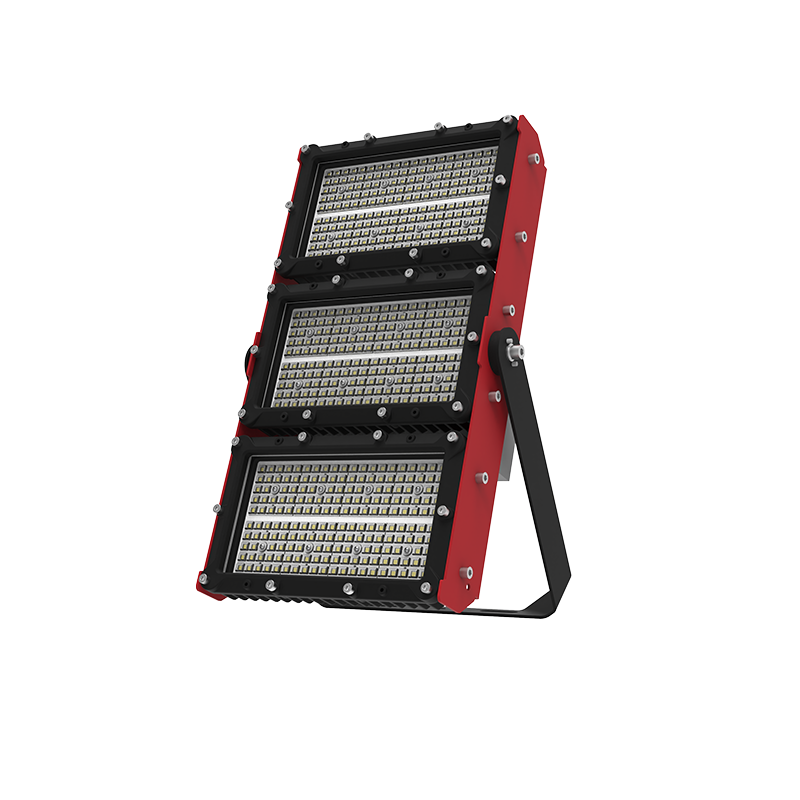

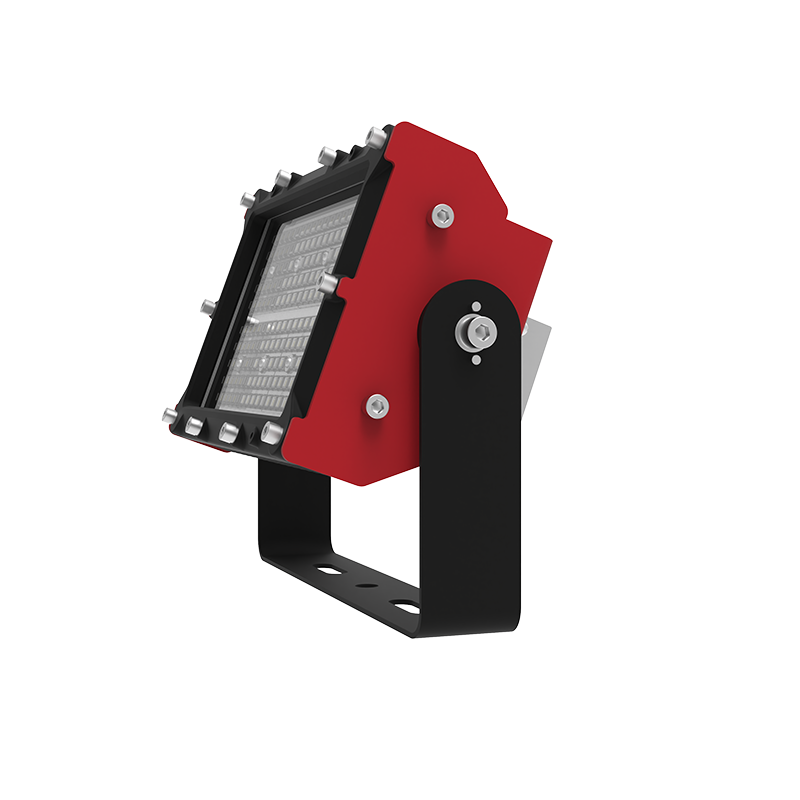

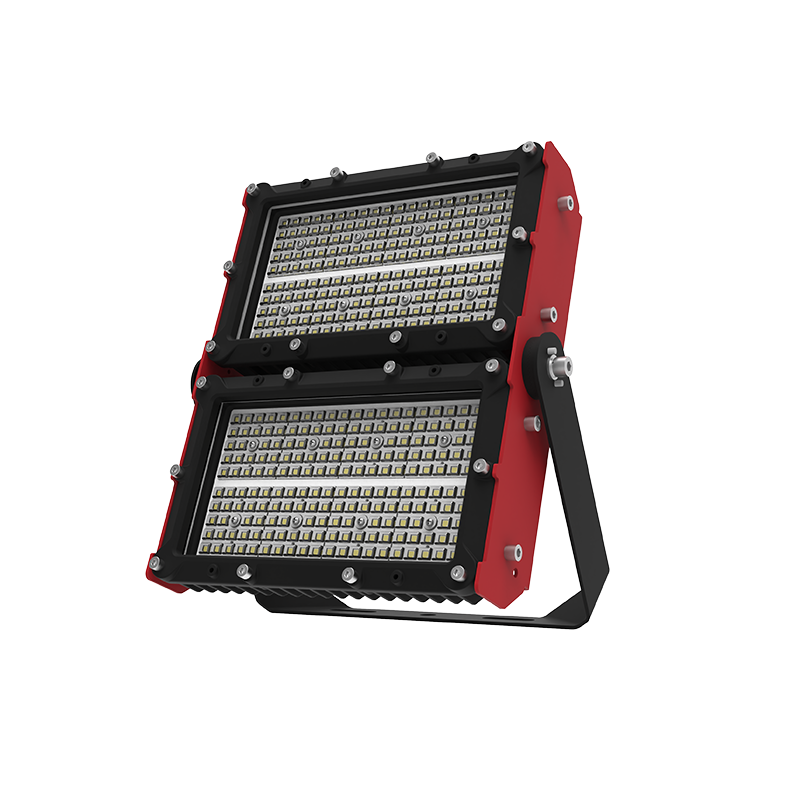

FLOOD MF Series
Expandable Design from 100W to 600W and Up to 90,000Lm
This modular highbay and flood is specially designed for designed fora variety of applications from harsh environment conditions to ordinary industrial workshops. Modular design to meet different power requirements. From 15,000 to 90,000 lumen output, it ideally replaces 250W-1000W HID fixtures.
Ratings and Certifications
UL 1598 Wet Locations
UL 8750 LED Safety
IP66
IK07
| Electrical | |
| Power (W) | 50W/100W/150W/200W/300W/400W |
| Voltage(s)/Frequency | AC120-277V 50/60HZ AC347-480V 50/60HZ |
| Power Factor | ≥95%@230V |
| THD | ≤20% |
| L70 | >140,000 Operation Hours @ 50° |
| Surge Protection | 4kVA |
| Optical | |
| Lumen Output (Lm) | 6000, 12,000, 18,000, 24,000, 36,000, 48,000 |
| Beam Angle(s) | 25°, 60°, 90°, 120° |
| CRI | Ra>75 |
| Mechanical | |
| Ambient Operating Temperature | -40F to 122F (-40C to 50C) |
| Housing Construction | Marine Grade Extruded Anodized Aluminum Polycarbonate Endcaps |
| Finish | Anodized and Thermoset Powdercoat |
| Lens Material | Polycarbonate |
| Dimensions (L×W) | 14.1″ x 7.9-22.8″; 356mm x 200mm-580mm |
| Warranty/Certifications | |
| Warranty Terms | 10-year LEDs/ 7 year Driver |
