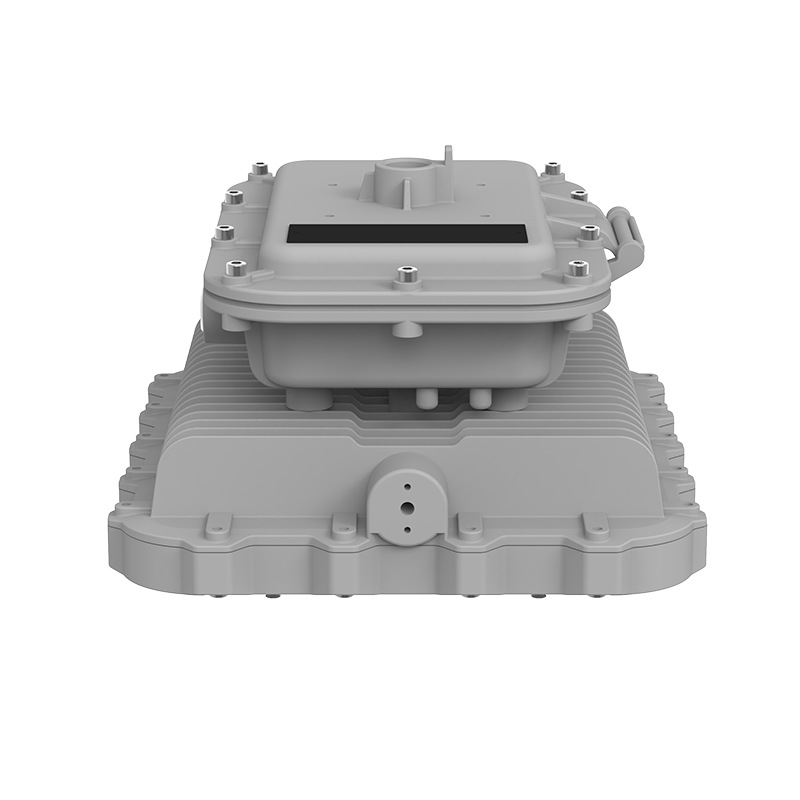

RECTANGLE H1 Series
Explosion Proof, Versatile and Energy Efficient
The Rectangle H1 series is a lightweight, high-performance LED explosion-proof lighting that is specifically engineered for installation in environments where flammable gases, vapors, or dust are present in quantities that pose a potential risk of explosion or fire. Emergency Lighting option is available.
Ratings and Certifications
Class l Division 1/Groups C,D
Class l Division 2/Groups A,B,C,D
Class ll Division 1/Group E,F,G
Class ll Division 2/Group F,G
Class iii
UL 844 Hazardous Location
UL 1598 Wet Location
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137
CSA C22.2 No.250.0:21
Paint Spray Booth
IP66
FCC
IK09
5G
NEMA 4X
| Electrical | |
| Power (W) | 80W, 100W, 150W, 200W |
| Voltage(s)/Frequency | AC100 – 277V @50/60HZ AC347 – 480V @50/60HZ |
| Power Factor | ≥.95 |
| L70 | 150,000 Hours@25°C |
| Optical | |
| Lumen Output | 12800 lm-32000 lm |
| Lumen Efficacy | 160-170 lm/W |
| Beam Angle(s) | 30° / 60° / 90° / 110° / T2 / T3 / T4 |
| CCT | 5000K, 4000K, 3000K |
| CRI | Ra>70 |
| Mechanical | |
| Ambient Operating Temperature | 80W,100W,150W
-40°F to +149°F (-40°C to 65°C) 200W -40°F to +140°F (-40°C to 60°C) |
| T-Code Rating | CID1 – T6 (80W,100W,150W)
CID1 – T5 (200W) CIID1 – T4A (80W,100W,150W) CIID1 – T4 (200W) CID2 – T4A (80W,100W,150W) CID2 – T4 (200W) |
| Housing Construction | Die Cast Aluminum |
| Housing Finish | Thermoset Powder Coat |
| Lens Material | Tempered Glass |

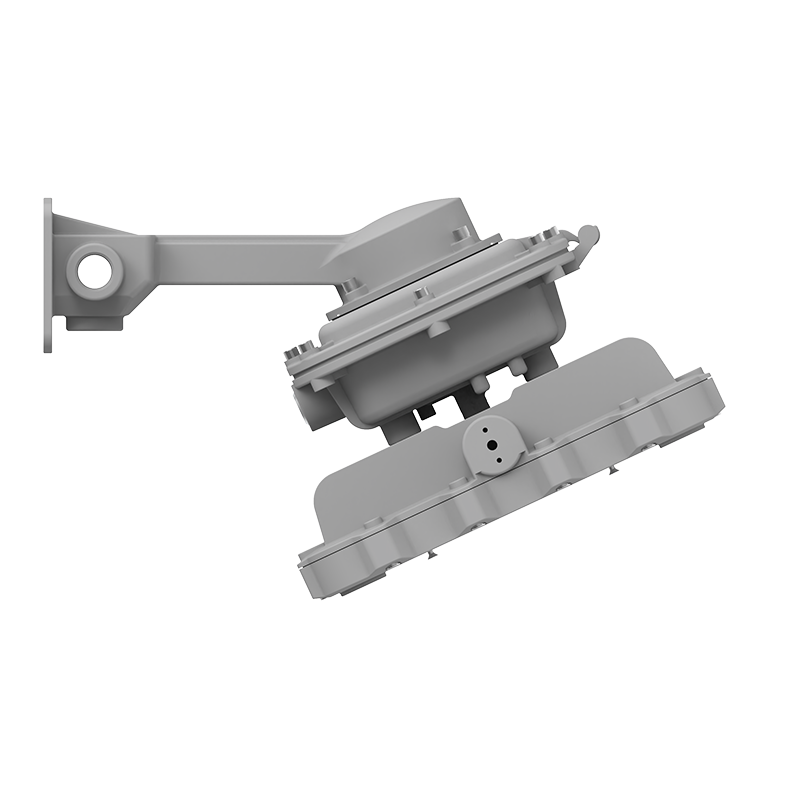

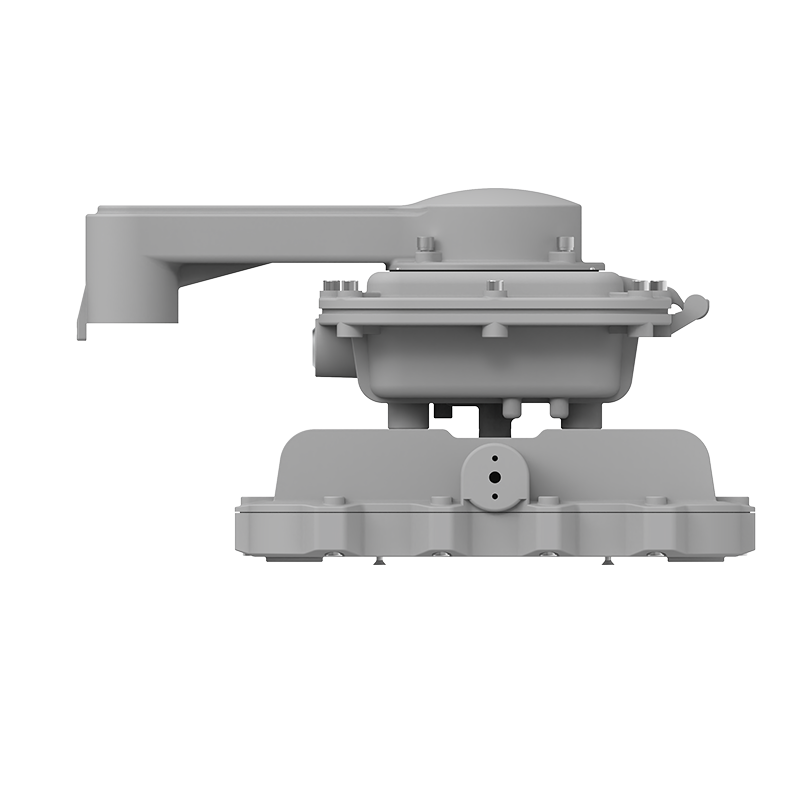

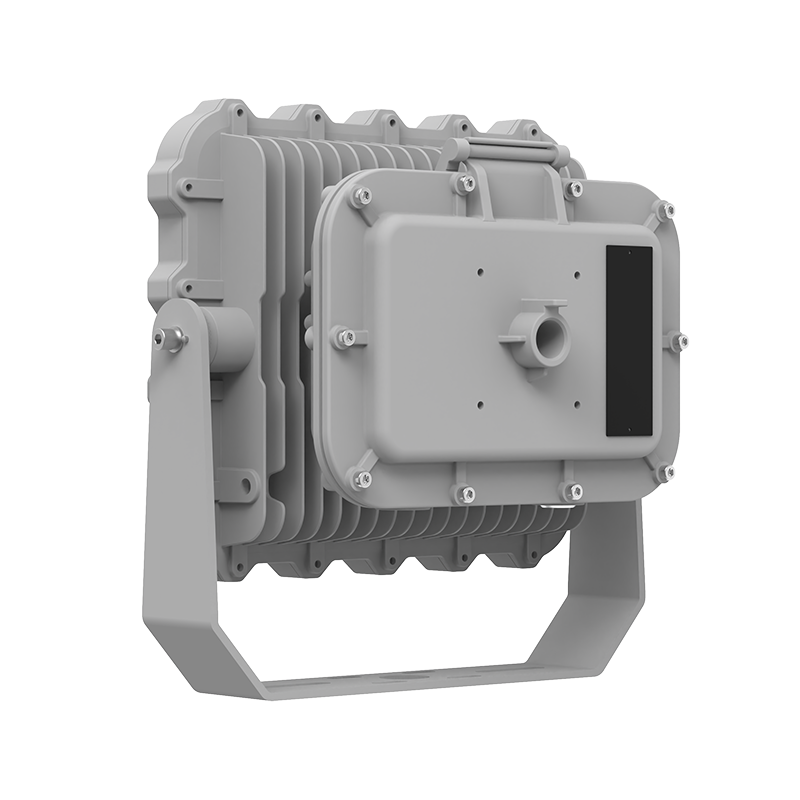

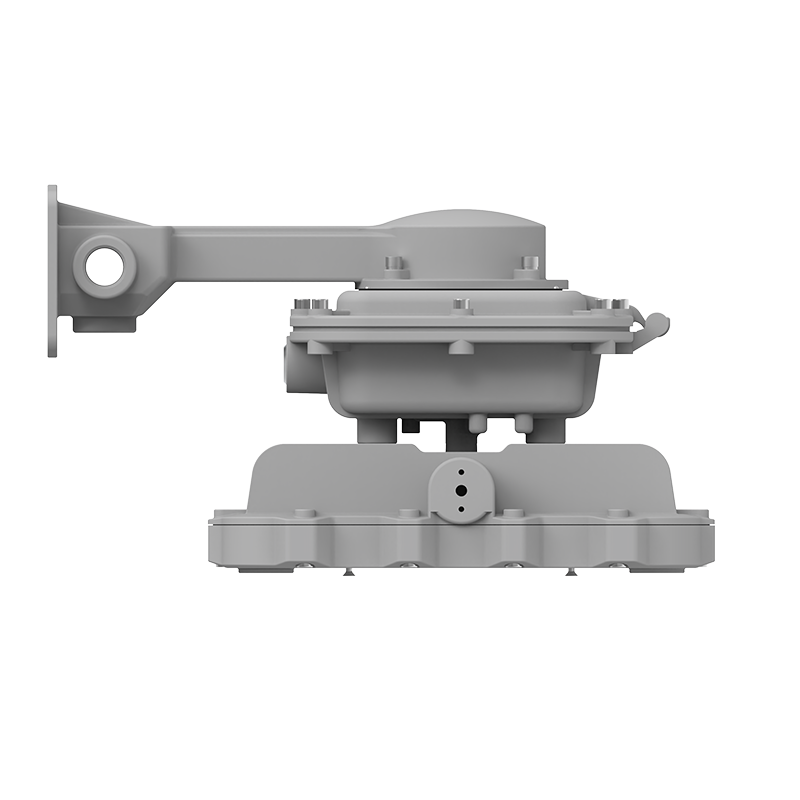

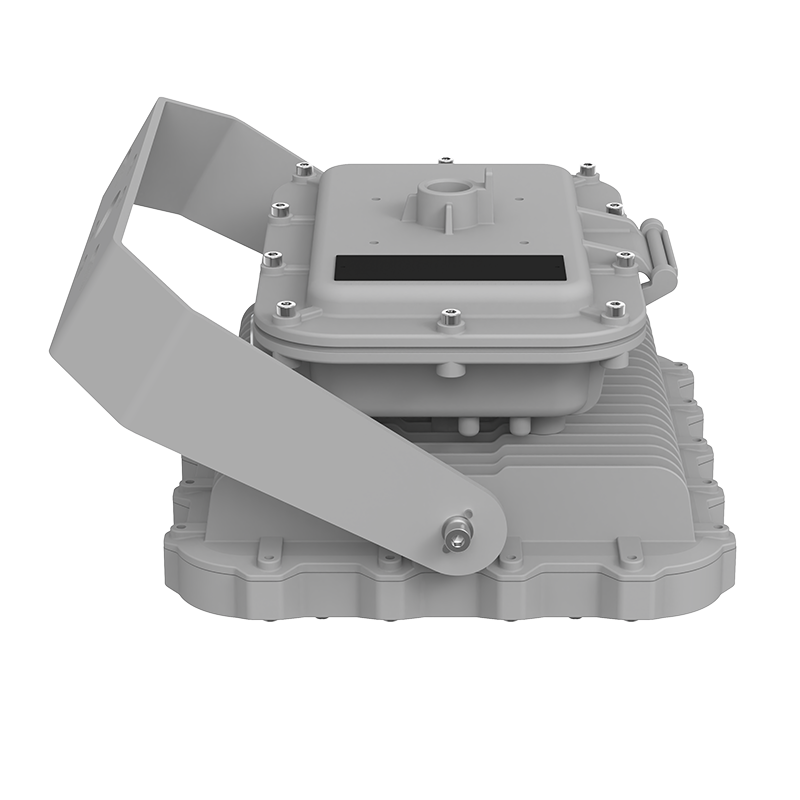

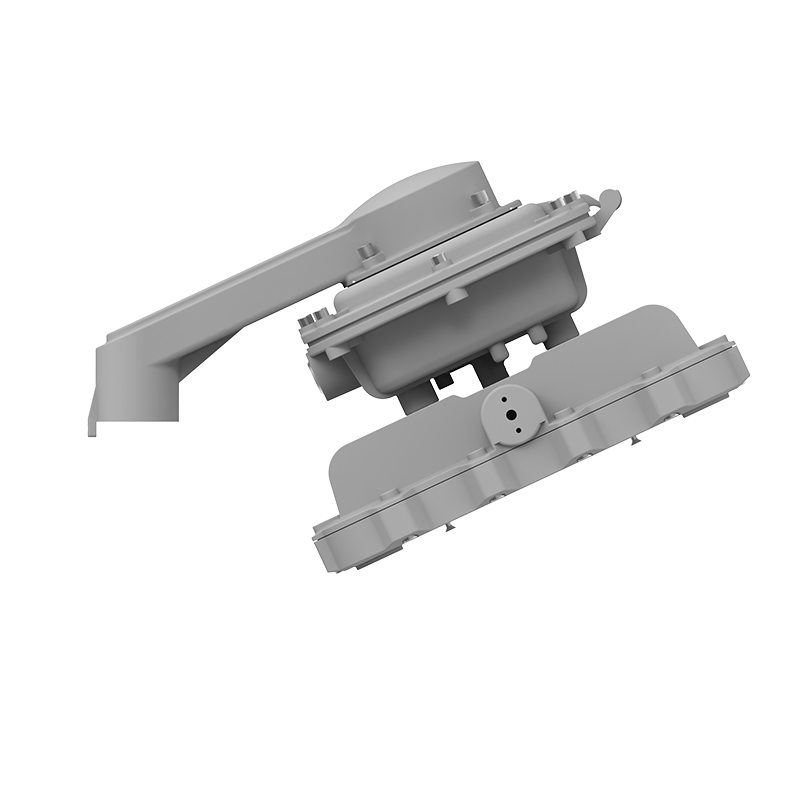

| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion |
| Weight | 25.4lbs/11.5kg |
| Dimensions (L×W×H) | 14.8×13.2×7.8in (376×334×197 mm) |
| Connections | 3/4″ NPT,1-1/2” NPT |
| Warranty/Certifications | |
| Warranty Terms | 10-year limited system warranty |
