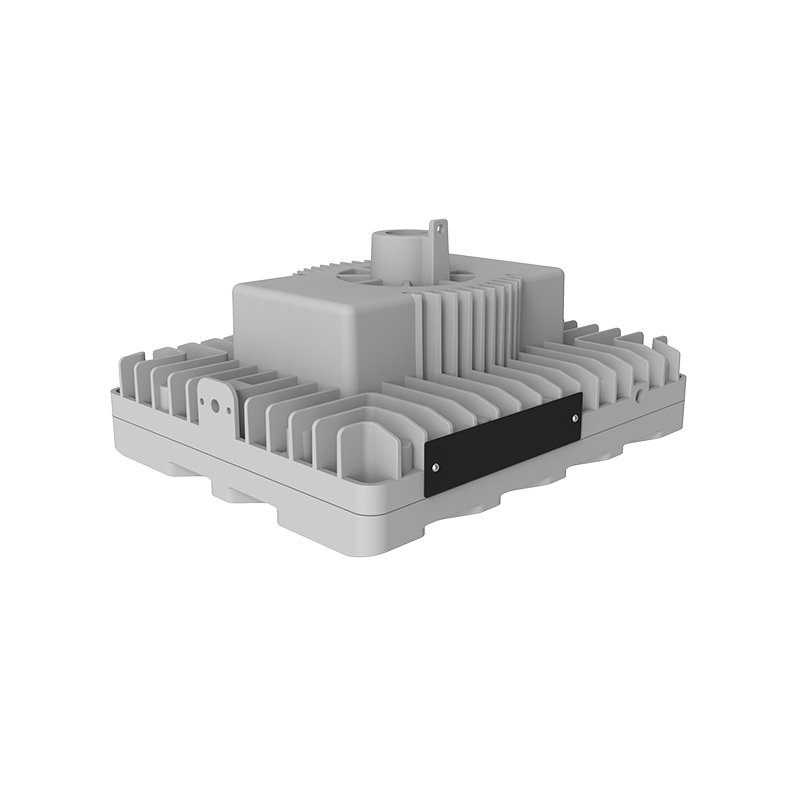

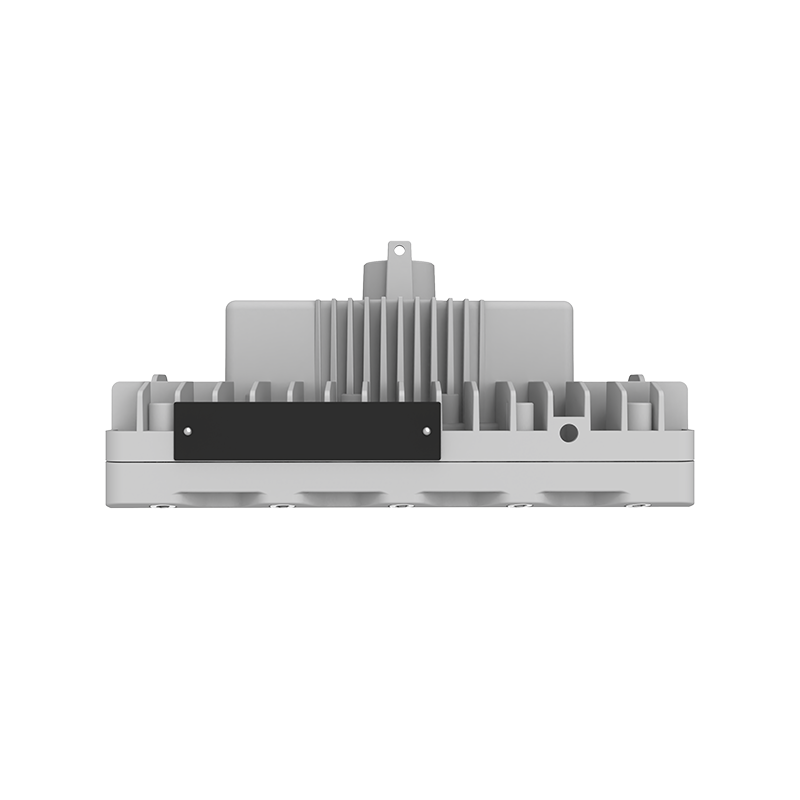

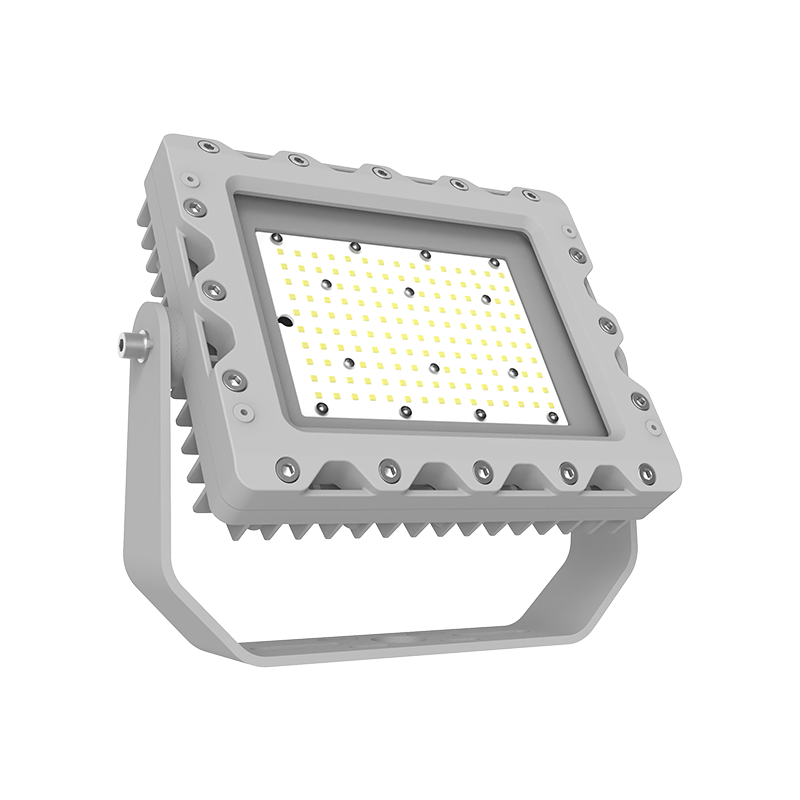

RECTANGLE MINI H1 Series
Superior Designed, Lightweight, Compact Area Light
Rectangle Mini Series LED explosion-proof lighting is specifically engineered for installation in environments where flammable gases, vapors, or dust are present in quantities that pose a risk of explosion or fire. Built to endure shock and vibration, it delivers reliable performance even in the most hazardous conditions.
Ratings and Certifications
Class l Division 1/Groups B,C,D
Class l Division 2/Groups A,B,C,D
Class ll Division 1/Group E,F,G
Class ll Division 2/Group F,G
Class lll
UL 844 Hazardous Location
UL 1598 Wet Location
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137
CSA C22.2 No.250.0:21
IP66
FCC
IK09
5G
NEMA 4X
| Electrical | |
| Power (W) | 20W/40W/60W* *Only available in 347-480V |
| Voltage(s)/Frequency | AC100 – 277V @50/60HZ AC347 – 480V @50/60HZ |
| Power Factor | >0.95 |
| L70 | >150,000 Hours @25°C |
| Optical | |
| Lumen Output | 3200 lm- 9600 lm |
| Lumen Efficacy | 160 lm/W |
| Beam Angle(s) | 30° / 60° / 90° / 110° / T2 / T3 / T4 |
| CCT | 2700K, 4000K, 5000K |
| CRI | Ra>70 |
| Mechanical | |
| Ambient Operating Temperature | (-40°C to 65°C) |
| T-Code Rating | CID1 – T6 CID2 – T4A CIID1 – T4A |
| Housing Construction | Marine Grade Cast Aluminum |
| Housing Finish | Thermoset Powder Coat |
| Lens Material | Tempered Glass |

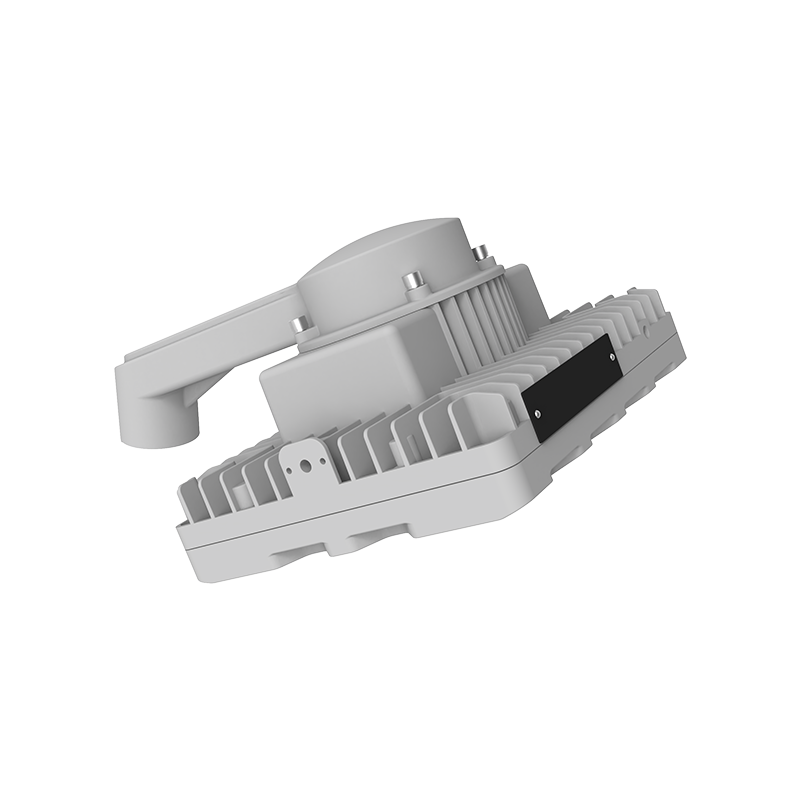

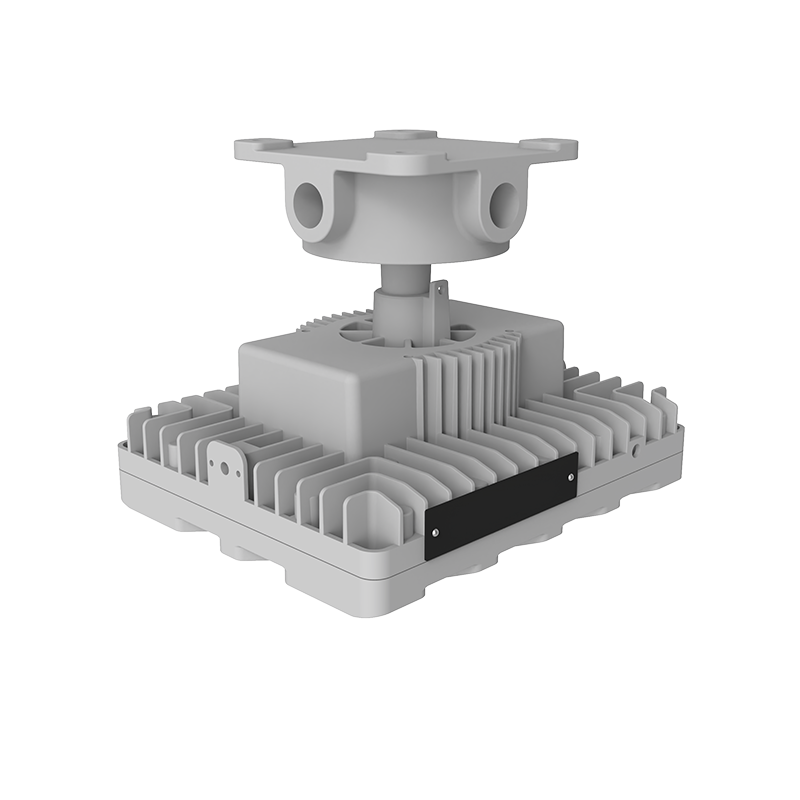

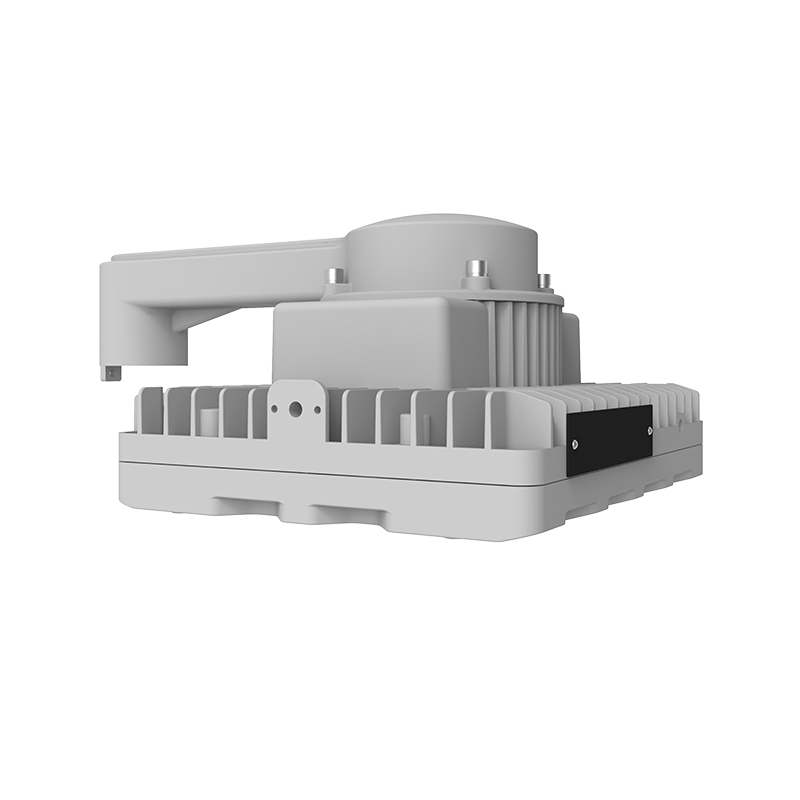

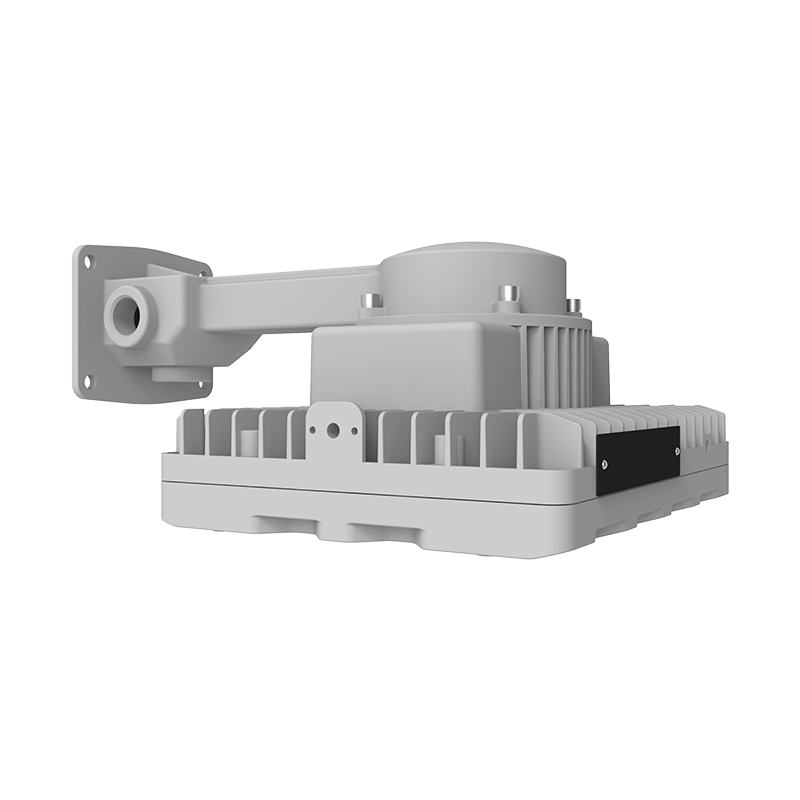

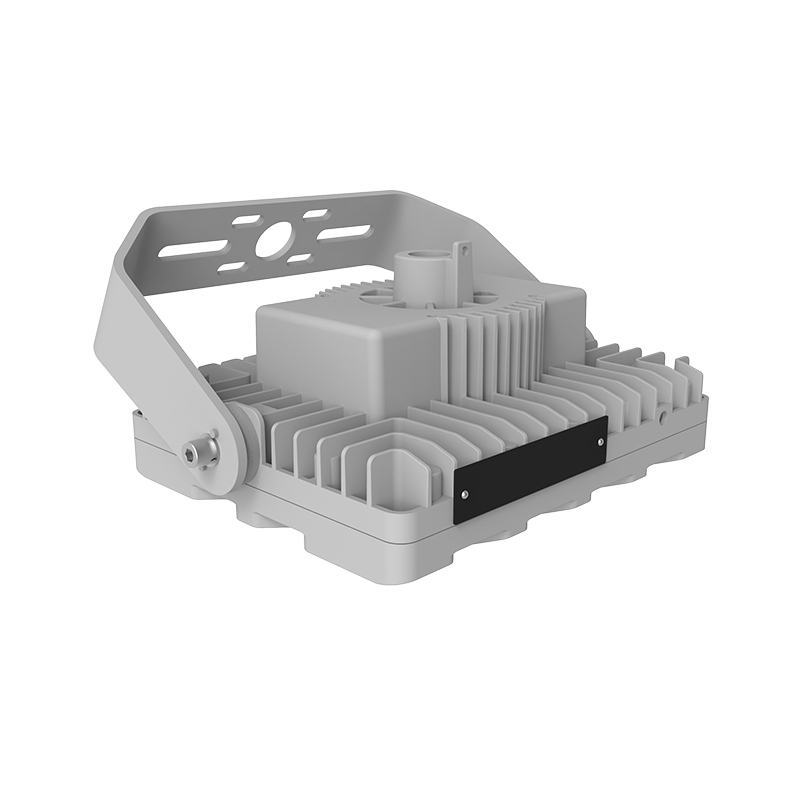

| Mounting Options | Pendant / Ceiling / Wall Mount / Stanchion |
| Weight | 11.5 lbs/5.2 kg |
| Dimensions (L×W×H) | 10.2×8.4×5.1in (258×214×129 mm) |
| Connections | 3/4″ NPT,1-1/2” NPT |
| Warranty/Certifications | |
| Warranty Terms | 10 year limited system warranty |
