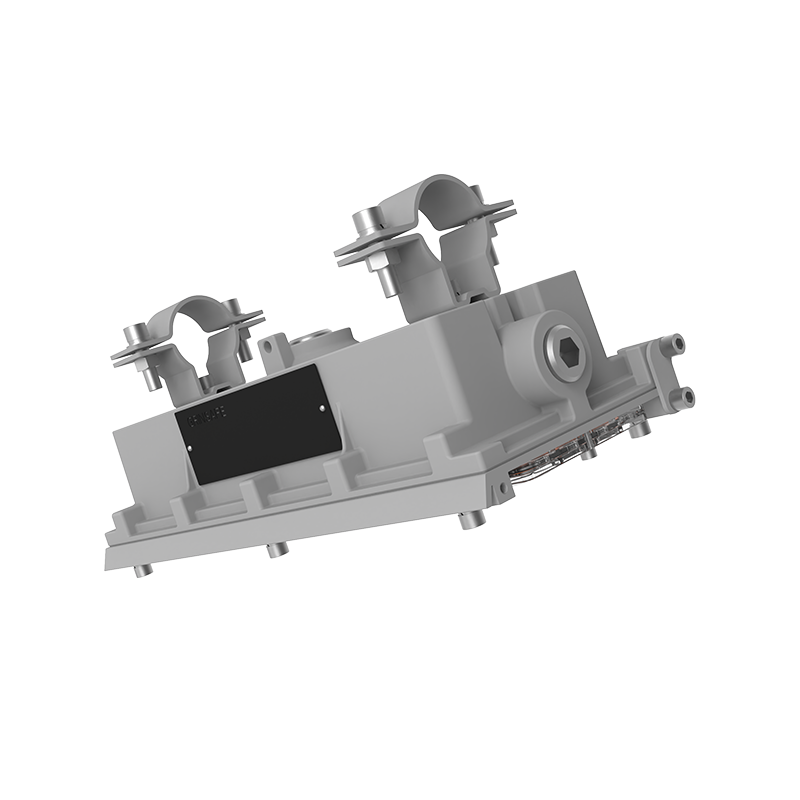

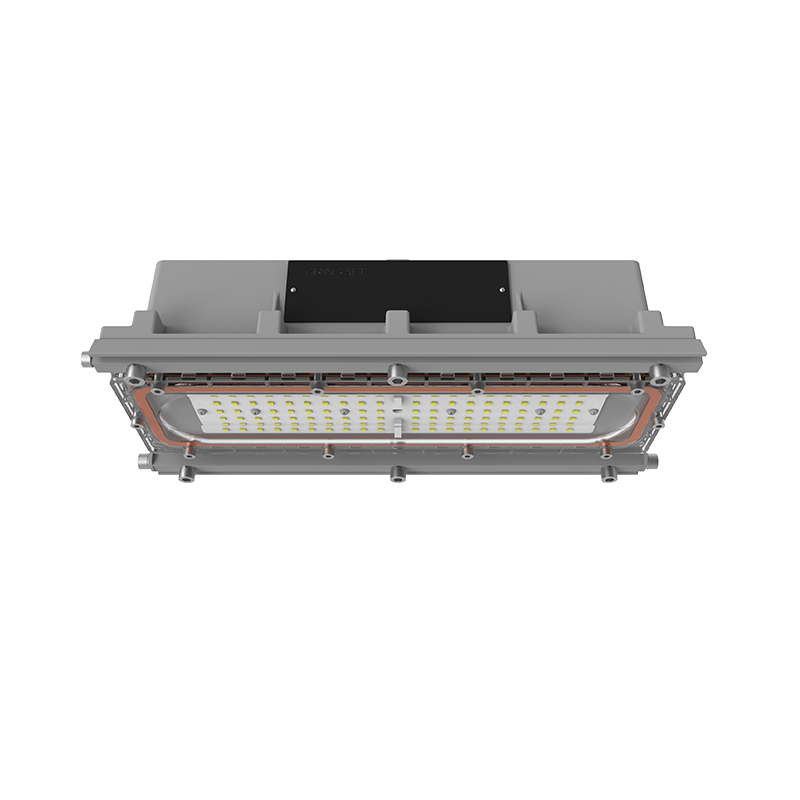

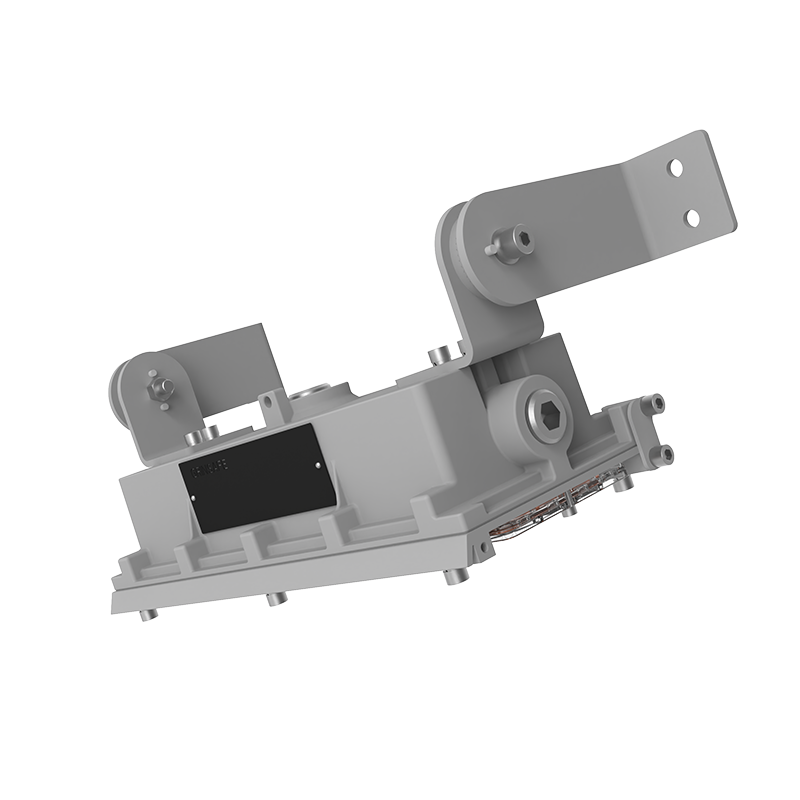

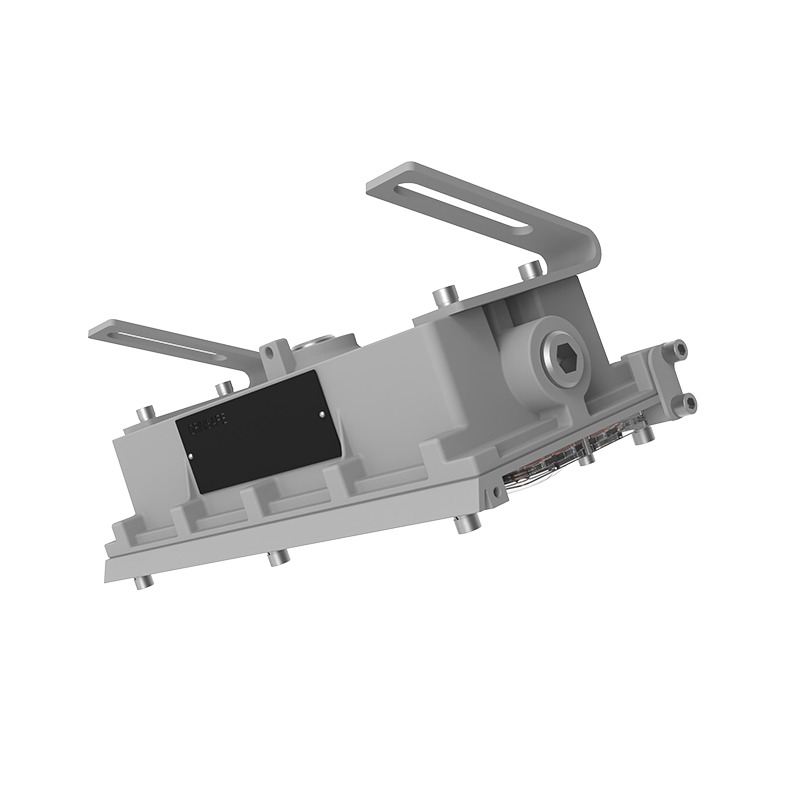

PACK Series
Explosion Proof, Versatile and Energy Efficient
The Pack light is designed to meet the specific requirements for safe operation in hazardous areas. These areas are defined as locations where flammable gases, vapors, or dust are present in quantities sufficient to pose a risk of explosion or fire.
Ratings and Certifications
Class l Division 2/Groups A,B,C,D
Class ll Division 2/Group E,F,G
Class ll Division 2/Group F,G
Class lll
UL 844 Hazardous Location
UL 1598 Wet Location
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137
CSA C22.2 No.250.0:21
IP66
FCC
IK10
5G
NEMA 4X
| Electrical | |
| Power (W) | 20W, 30W |
| Voltage(s)/Frequency | AC100 – 277V/AC |
| Power Factor | ≥.95 |
| L70 | 150,000 Hours@25°C |
| Optical | |
| Lumen Output | 3300 lm-4950 lm |
| Lumen Efficacy | 165 lm/W |
| Beam Angle | 110° |
| CCT | 5000K, 4000K, 3000K |
| CRI | Ra>70 |
| Mechanical | |
| Ambient Operating Temperature | -40°C to 65°C |
| T-Code Rating | CID2 – T4A
CIID1 – T5 |
| Housing Construction | Die Cast Aluminum |
| Housing Finish | Thermoset Powder Coat |
| Lens Material | Polycarbonate |
| Mounting Options | Ceiling mount / Wall mount |
| Weight | 5.9 lbs/2.7 kg |
| Dimensions (L×W×H) | 12.6×5.8×3.9 in (320×148×100 mm) |
| Connections | 3/4″ NPT |
| Warranty/Certifications | |
| Warranty Terms | 10-year limited system warranty |
